1250-00

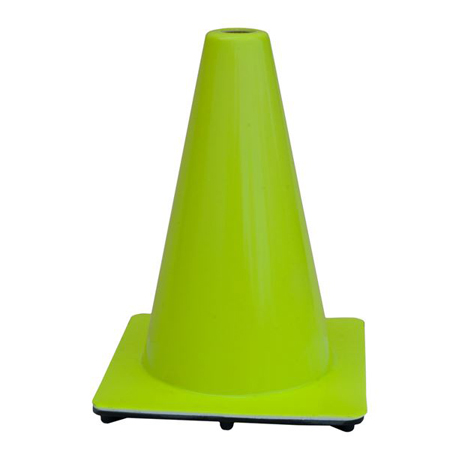

All vinyl construction assures durability and flexibility in all weather conditions. Long lasting brilliant fluorescent color, provides high visibility protection. Ultraviolet stabilized color provides maximum resistance to fading. Colors available: Safety-Orange and Lime Green. High density base creates low center of gravity for maximum stability. Options such as custom stenciling and reflective collars are available.

MODEL NUMBER 1250-00
COLOR
MATERIAL One Piece Construction All PVC ConeBase - Black Base - White Underline, Orange Top Coat, Highly Pigmented PVC - UV Stabilzed
HEIGHT 12 in
WEIGHT 1.5 lb 0.68 Kilogram

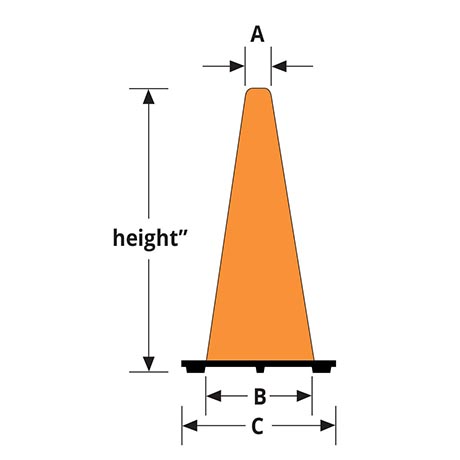

DIMENSION A 2 in
DIMENSION B 6.5 in
DIMENSION C 8.5 in
WALL THICKNESS TOP 0.065 in
WALL THICKNESS BOTTOM 0.100 in
TENSILE STRENGTH 1200 psi min
Elongation 200% min
TEAR STRENGTH 250 lbs/inch min
HARDNESS 75 +/- 5 Shore A

***Weights & dimensions are nominal. Specifications are subject to change without notice.
