1850-00

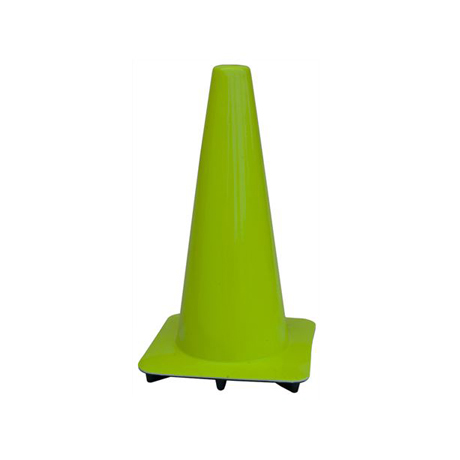

All vinyl construction assures durability and flexibility in all weather conditions. Long lasting brilliant fluorescent color, provides high visibility protection. Ultraviolet stabilized color provides maximum resistance to fading. Colors available: Safety-Orange, Pink, Lime Green, Blue, Yellow, and White. High density base creates low center of gravity for maximum stability. Engineered to meet MUTCD and NCHRP-350 specifications. Options such as custom stenciling and 3M reflective collars are available

MODEL NUMBER 1850-00
COLOR
MATERIAL One Piece Construction All PVC ConeBase - Black Base - White Underline, Colored Top Coat, Highly Pigmented PVC - UV Stabilzed
HEIGHT 18 in
WEIGHT 3 lb 1.36 Kilogram
DIMENSION A 2.19 in
DIMENSION B 7.25 in
DIMENSION C 11.5 in
WALL THICKNESS TOP 0.065 in
WALL THICKNESS BOTTOM 0.120 in
TENSILE STRENGTH 1200 psi min
Elongation 200% min
TEAR STRENGTH 250 lbs/inch min
HARDNESS 75 +/- 5 Shore A

***Weights & dimensions are nominal. Specifications are subject to change without notice.
