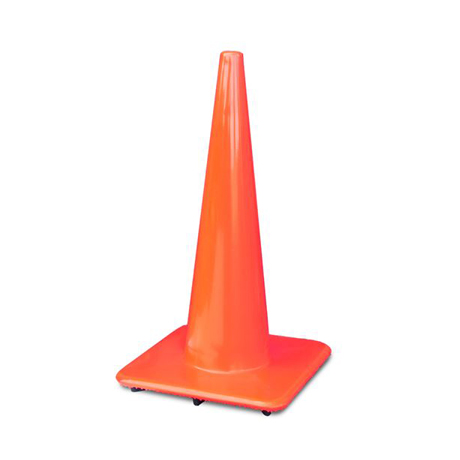

All vinyl construction assures durability and flexibility in all weather conditions. Long lasting brilliant fluorescent color, available in Safety-Orange, provides high visibility protection. Ultraviolet stabilized color provides maximum resistance to fading. High density base creates low center of gravity for maximum stability. Engineered to meet MUTCD and NCHRP-350 specifications. Options such as custom stenciling and reflective 3M™ collars are available.
|MATERIAL||One Piece Construction All PVC ConeBase - Black Base - White Underline, Orange Top Coat, Highly Pigmented PVC - UV Stabilzed|
|WEIGHT||10 lb 4.54 Kilogram|
|DIMENSION A||2.19 in|
|DIMENSION B||10.5 in|
|DIMENSION C||15.25 in|
|WALL THICKNESS TOP||0.075 in|
|WALL THICKNESS BOTTOM||0.130 in|
|TENSILE STRENGTH||1200 psi min|
|TEAR STRENGTH||250 lbs/inch min|
|HARDNESS||75 +/- 5 Shore A|
***Weights & dimensions are nominal. Specifications are subject to change without notice.
