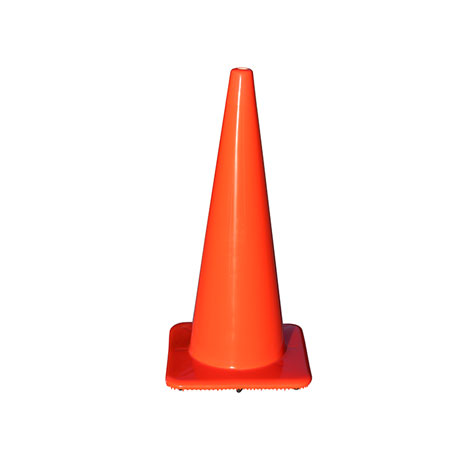

2850-10

All vinyl construction assures durability and flexibility in all weather conditions. Long lasting brilliant fluorescent color, available in Safety-Orange, provides high visibility protection. Ultraviolet stabilized color provides maximum resistance to fading. High density base creates low center of gravity for maximum stability. Engineered to meet MUTCD and NCHRP-350 specifications. Options such as custom stenciling and reflective 3M ™ collars are available.

MODEL NUMBER 2850-10
COLOR
MATERIAL One Piece Construction All PVC ConeBase - Black Base - White Underline, Orange Top Coat, Highly Pigmented PVC - UV Stabilzed
HEIGHT 28 in
WEIGHT 10 lb 4.54 Kilogram
DIMENSION A 2.19 in
DIMENSION B 10.5 in
DIMENSION C 15.25 in
WALL THICKNESS TOP 0.075 in
WALL THICKNESS BOTTOM 0.130 in
TENSILE STRENGTH 1200 psi min
Elongation 200% min
TEAR STRENGTH 250 lbs/inch min
HARDNESS 75 +/- 5 Shore A

***Weights & dimensions are nominal. Specifications are subject to change without notice.

MODEL NUMBER 2850-10
COLOR
MATERIAL One Piece Construction All PVC ConeBase - Black Base - White Underline, Orange Top Coat, Highly Pigmented PVC - UV Stabilzed
HEIGHT 28 in
WEIGHT 10 lb 4.54 Kilogram
DIMENSION A 2.19 in
DIMENSION B 10.5 in
DIMENSION C 15.25 in
WALL THICKNESS TOP 0.075 in
WALL THICKNESS BOTTOM 0.130 in
TENSILE STRENGTH 1200 psi min
Elongation 200% min
TEAR STRENGTH 250 lbs/inch min
HARDNESS 75 +/- 5 Shore A

***Weights & dimensions are nominal. Specifications are subject to change without notice.
